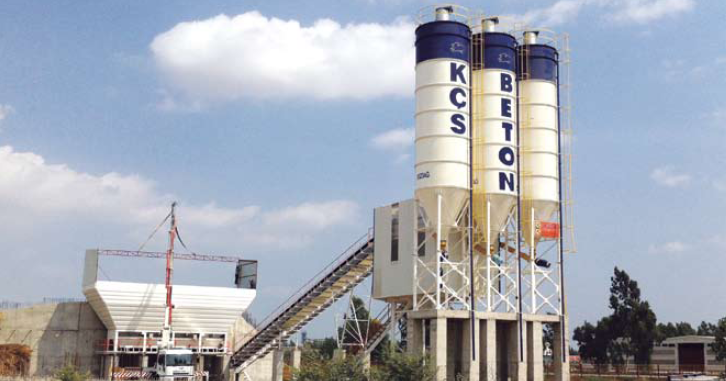

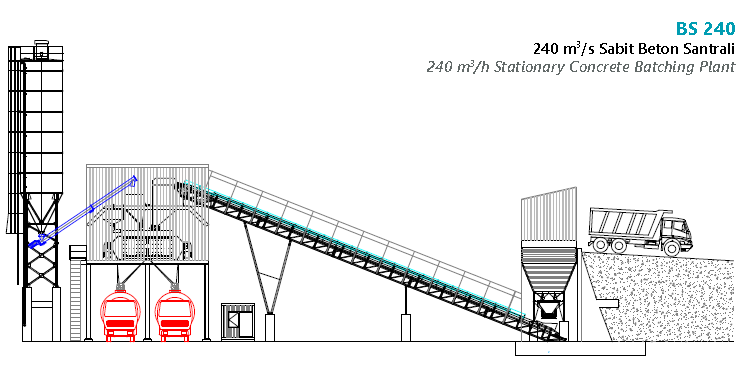

BS 240
Bozdag stationary concrete batching plants are easy to mount via module system. These plants are being installed in a 5-6 daytime by bolting method without welding. Thanks to this feature, the stationary concrete batching plants can be easily relocated from a site to site as well as constant field. As all components excluding electric motors, gearbox and electronic parts are produced in our production facilities, it is possible to manufacture the different types of concrete batching plants based on every site location and environment.
Technical Spesifications
| Type | BS 240 |
| Plant Capacity (m³/h) | 240m³/s |
| Mixer Type | TWIN SHAFT BTS 9000/6000 |
| Mixer Capacity | 6 m³ |
| Dry Capacity | 9000 lier |
| Compressed Concrete | 6000 liter |
| Mixing Motor Power | 2x55 kw |
| Aggregate Bunker Compartments | 4-8 adet |
| Aggregate Bunker Capacity | 120-400m³ |
| Aggregate Collecting Hopper | 14000 kg |
| Cement Weighing Hopper | 3000 kg |
| Water Weighing Hopper | 1500 kg |
| Additive Weighing Hopper | 100 kg |
| Total motor power | 330-350kw |
