BTS 3000-2000 Twin Shaft

The most important and critical phase of concrete production is the mixing phase of the elements forming concrete including aggregate, cement, water and additives etc. which are filled in the mixer after the process of weighing in weighing units in a very short time with

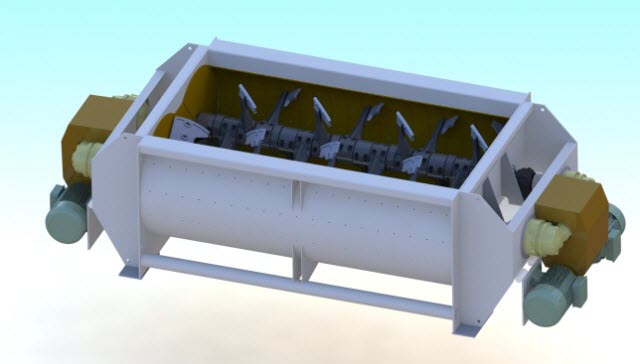

maximum homogeneity. Synchronously rotating horizontal axis Twin Shaft Mixers has the most advantageous system providing maximum homogeneity in the shortest time period.

General Specifications

  • Mixer Arms: Wear-resistant special alloy steel castings
  • Mixer blades and scrapers: Special Ni-hard casting
  • Mixer blades, scrapers and arms on the shafts: Bolted and easily replaceable
  • Grease lubrication unit: Automatic lubrication based with minimum oil level warning
  • Mixer discharge cover: With hydraulic actuators. Electricity cut off in the community in case of emergency, to free up the concrete and hand pump

Technical Specifications

Type BTS 3000-2000 TWIN SHAFT
Dry Capacity 3000 lt
Compressed Concrete 2000 lt
Mixing Motor Power 2 x 37 kw
Hydraulic Unit Power 1.5 kw
Gearbox BONFIGLIOLI
Maximum Particle Size 90 mm
Wearing plates (sides)(HARDOX) 12 mm
Wearing plates (motor sides (HARDOX) 10 mm
